Envhyro, Terratrak plus, Plastic panels, ground protection and load distribution panels for plant and machinery, vehicles and pedestrians
Description

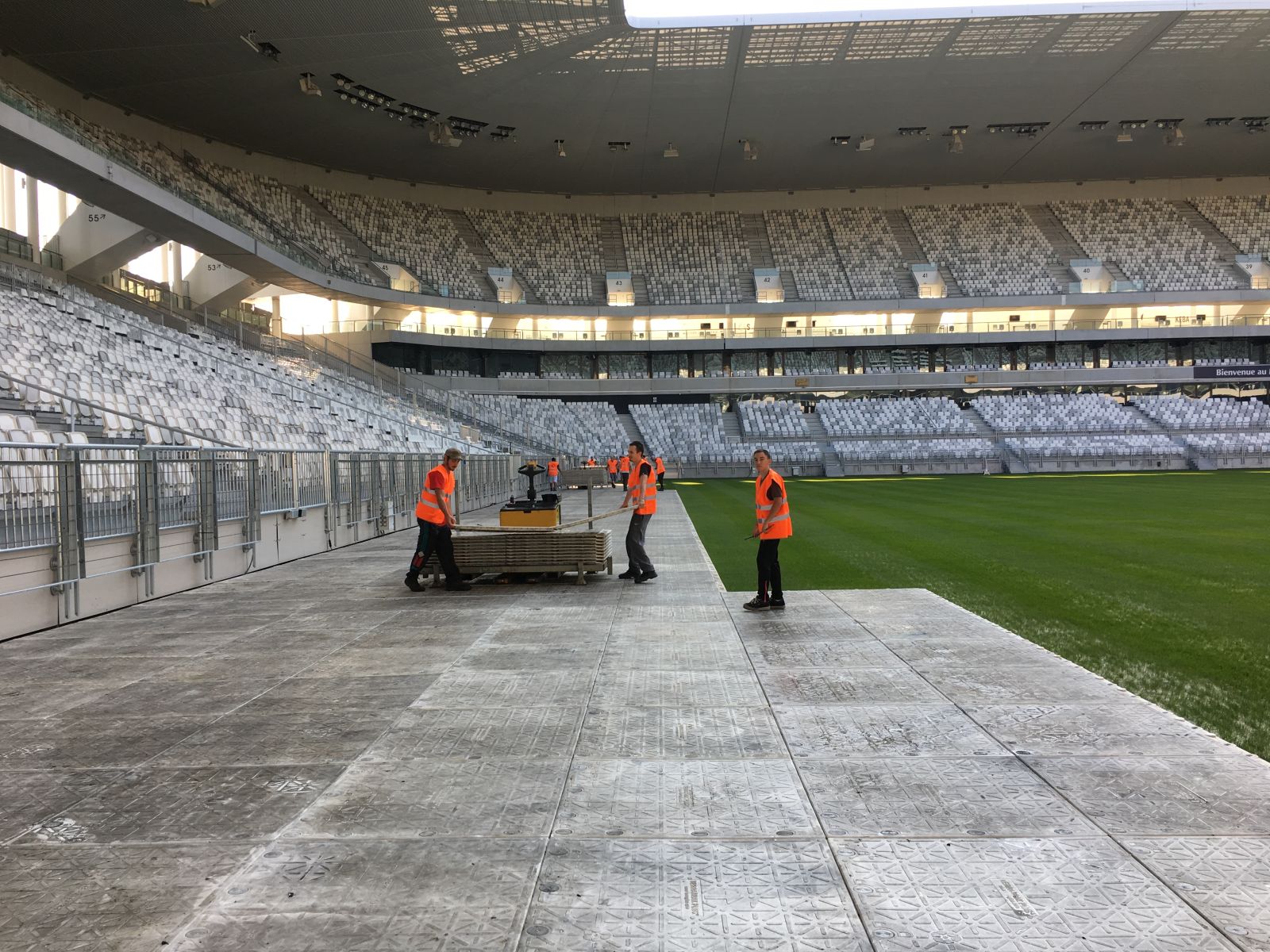

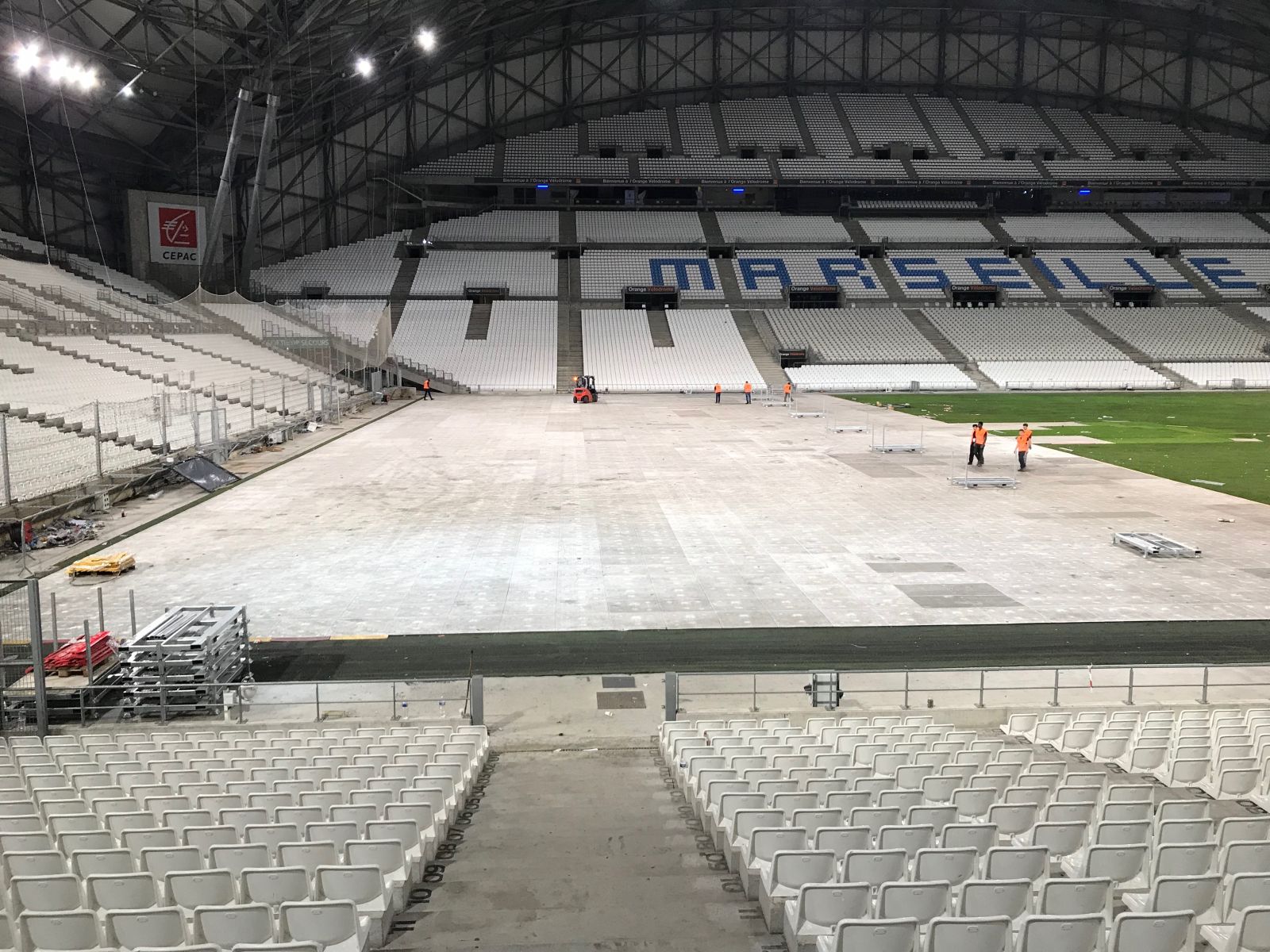

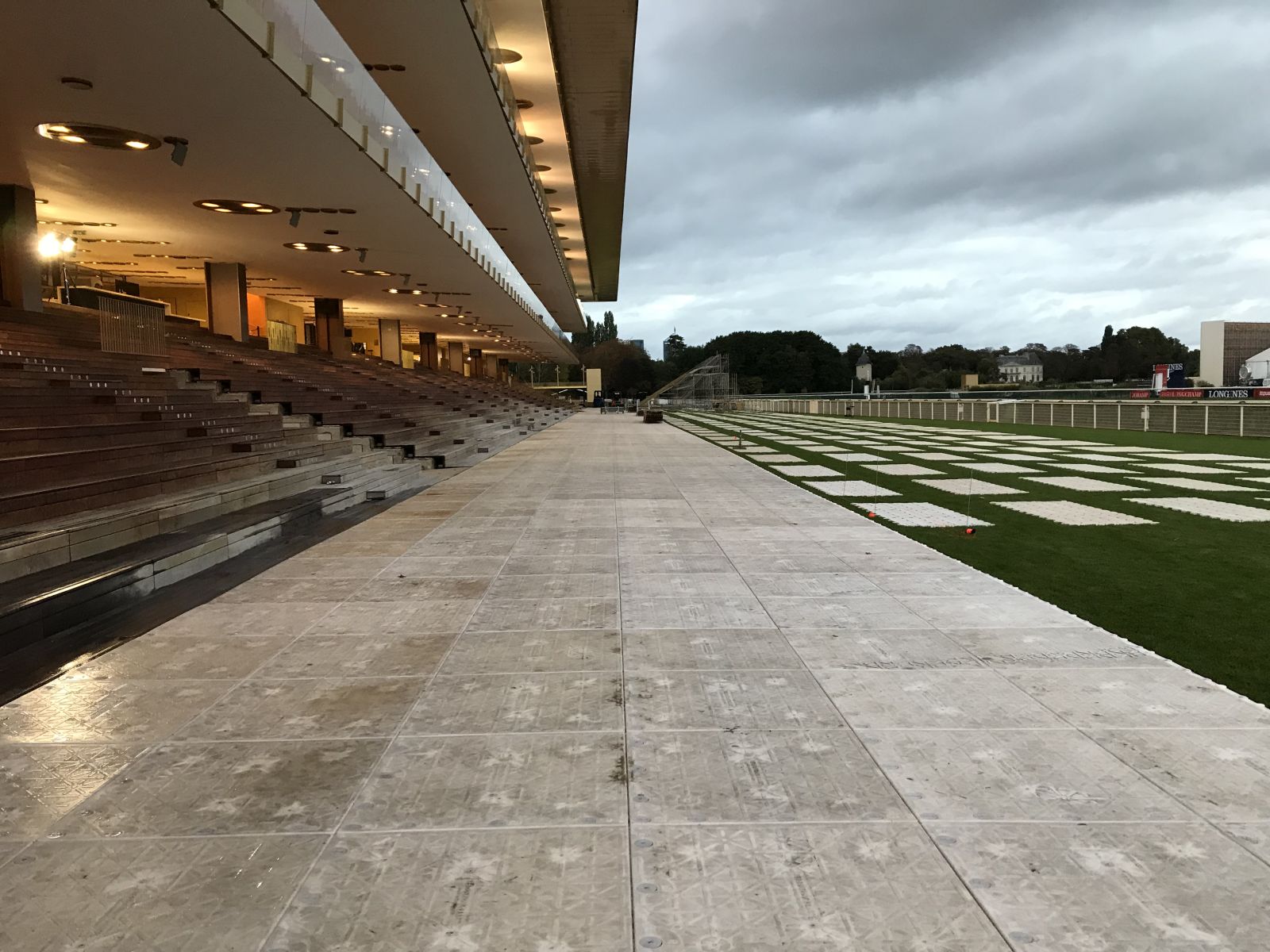

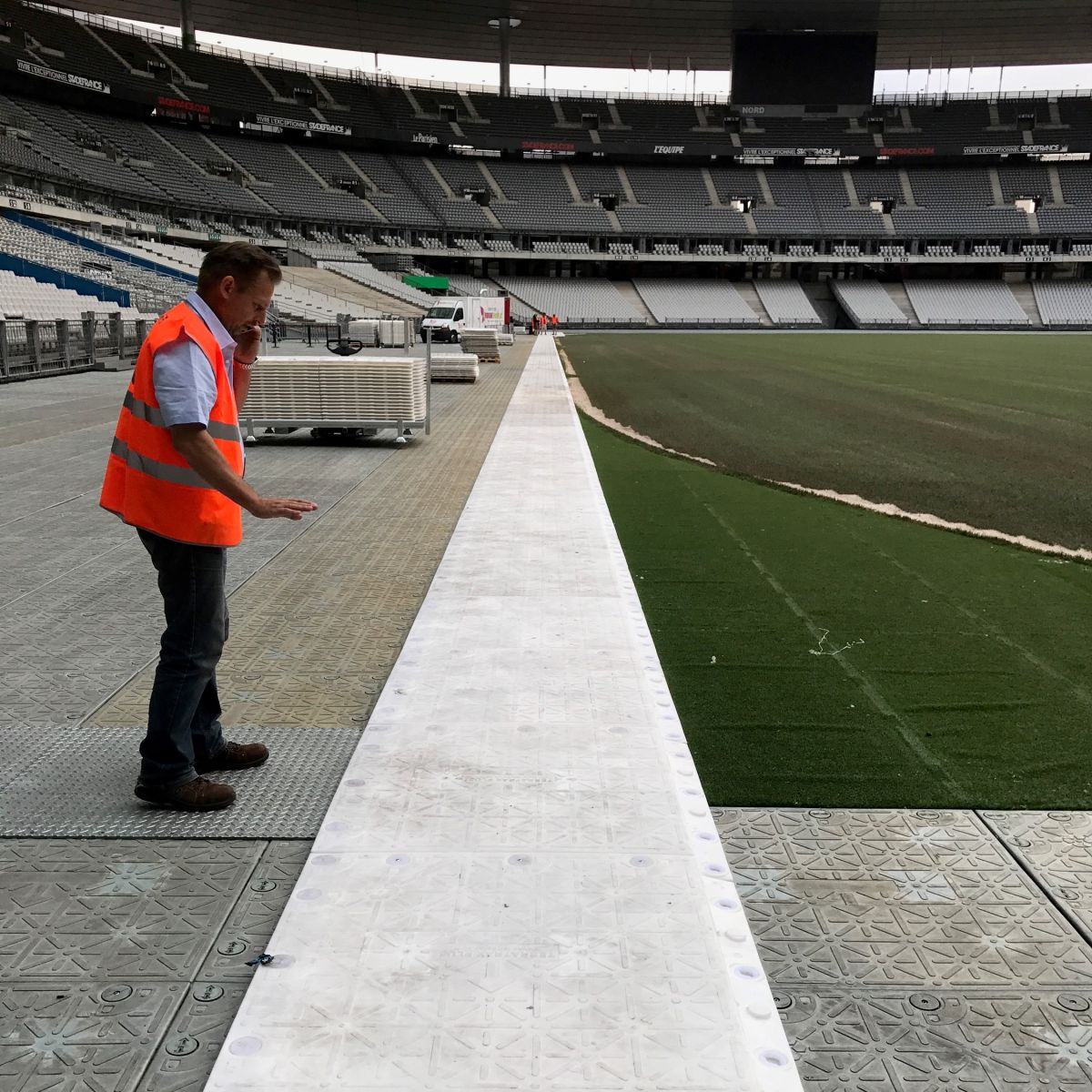

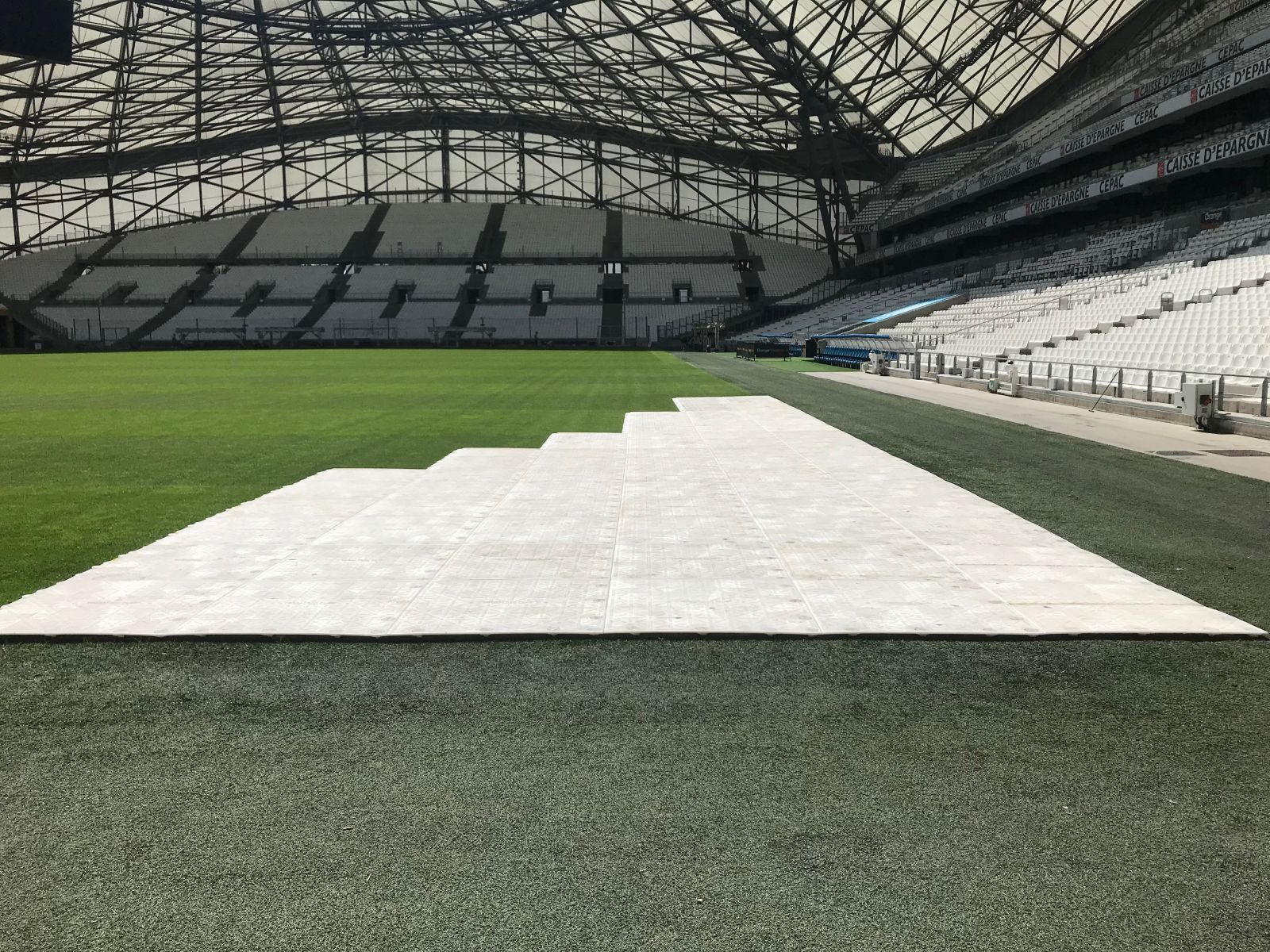

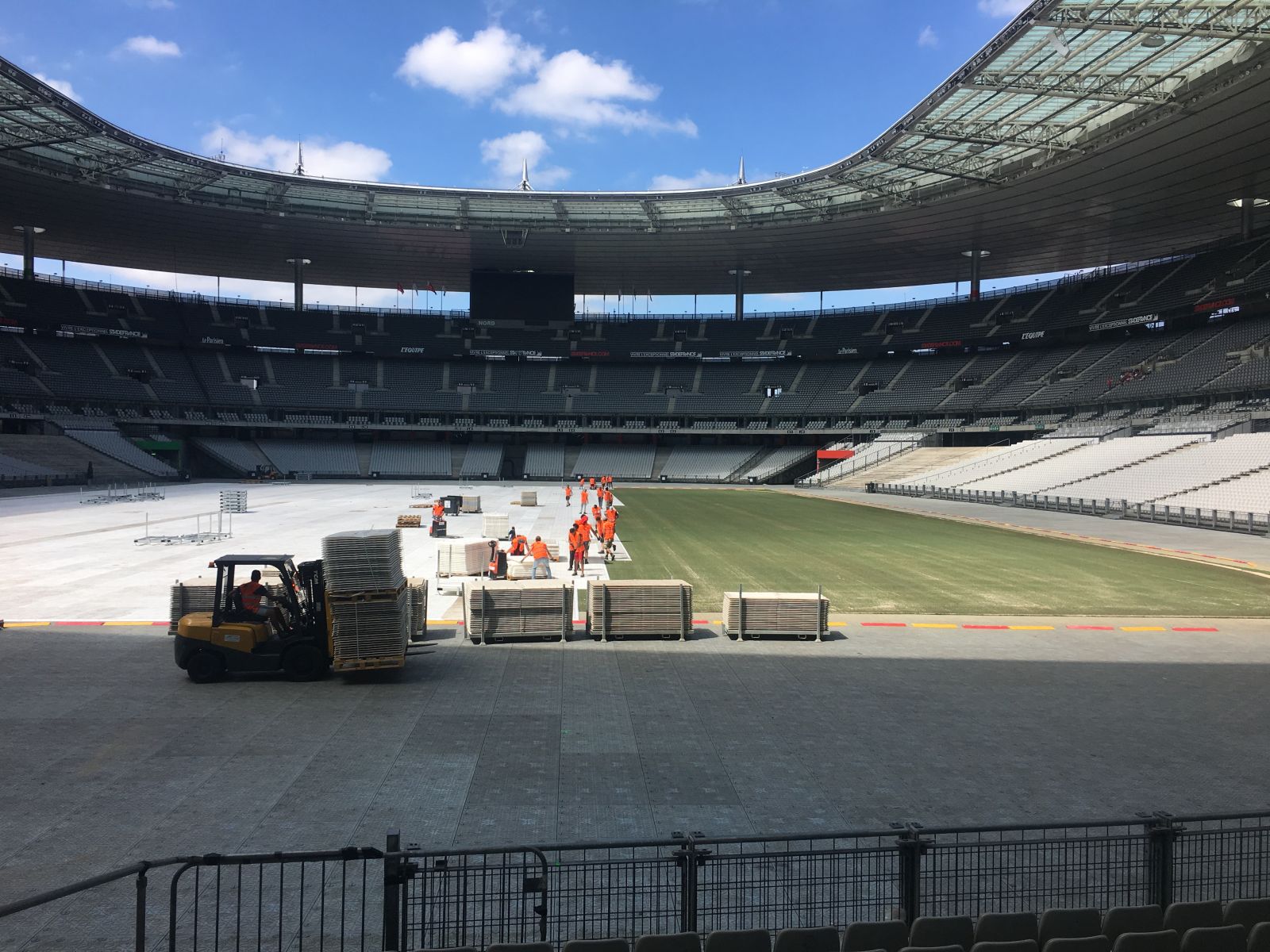

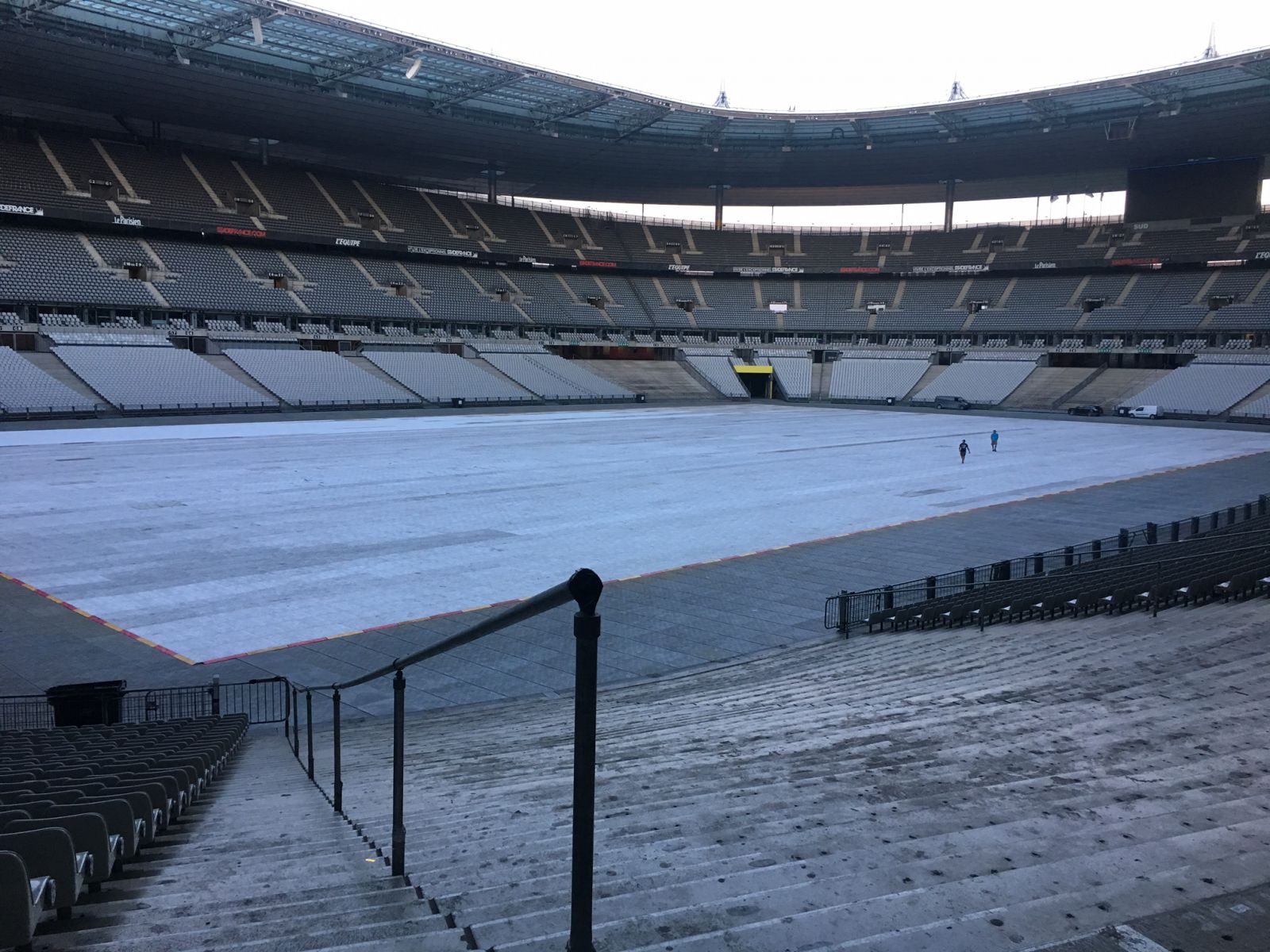

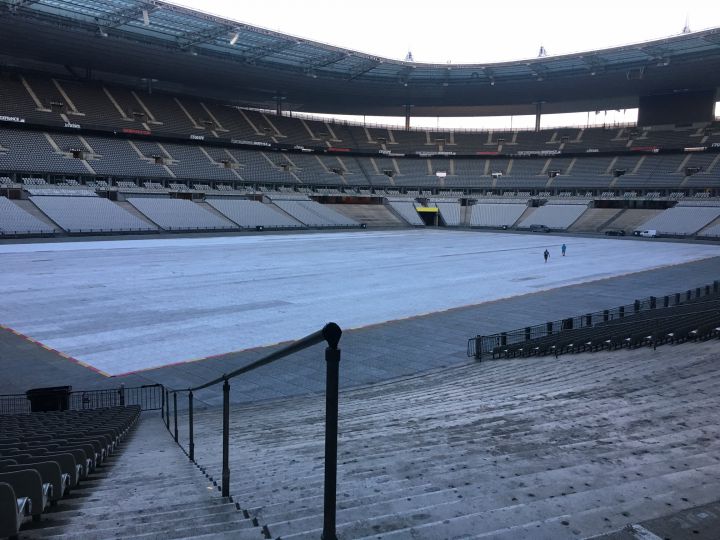

- Terratrak plus is a solution for stadiums and arenas allowing for the hosting of large concerts, non-sporting events and festivals. They can be installed and uninstalled quickly and alternated for matches without compomissing the quality of the playing area.
- They have a puncture resistance of 1173 kg for 20 mm diameter and a compressive strength of 7288 KN per m².
- Terratrak plus is naturally translucent, allowing light to pass through and photosynthesis to occur when the lawn is covered.
- Weighing only 46 kg, Terratrak plus is easily hand-laid by 2 people.
Properties
- Structural injection molding using a blowing agent, which produces a foamed structure which, in turn reinforces the resistance of the internal cells.
- The panels are connected to each other by a locking system.
- This locking system requires a specific locking key.
- These panels are not versatile and can only be laid on a flat surface such as stadium pitches or tartan track.
- They allow accessibility to pedestrians, people with reduced mobility, light and heavy-goods vehicles, cranes and construction equipment.
Technical specifications
- Matérial: Virgin High Density Polyethylene (PEHD) with UV stabilizer
- Colors: Naturally translucent
- Surface: Non-slip
- Total dimensions: 1,20 m x 1,20 m x 38 mm - usable dimensions per panel = 1,10 m x 1,10 m = 1,21 m² - Factory pre-assembled in blocks of 2, ie 2,42 m².
- Weight: 23 kg per panel, or 46 kg for 2 pre-assembled panels.
- Permissible load: Puncture resistence 1173 KG for 20 mm diameter and a compressive strength of 7288 KN.
- Transport: 25 panels/pallet, 18 pallets per articulated lorry, ie 1089 m².
Accessories
- Ramps
